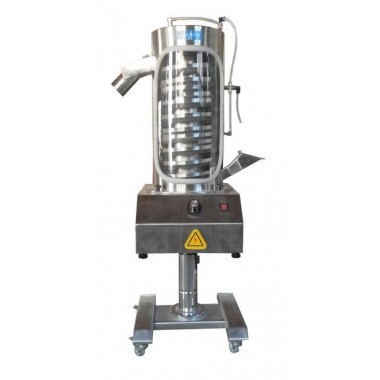

SZS-230 uphill Tablet Pill Deduster
Product Application:
SZS series top spin sieve machine has utilized many advanced technologies in its creation. This top spin sieve machine is able to act as both elevating and dedusting machine, which made it an unusual combination with other tablet-compressing machine and metal detection machine, and also made it extremely applicable in the filed of pharmacy, chemical engineering, electronics, and food.
Main Features：
The machine can do the entrance and exit of 360 degrees of adjustment, convenient production, space saving, outstanding production efficiency, can meet the mass production of 3-35mm diameter of various shaped tablets; the new device design, so as to ensure the machine running smooth, low noise.
Technical Parameter:
Model | SZS230 |
Material | Option 1: 304 stainless steel |
Option 2: 316 stainless steel (contact part) | |
Output Capacity(pcs/h) | 1000,000(Φ4) |
Power(w) | 150 |
Dedusting Distance(m) | 6.2 |
Max Tablet Dia(mm) | Φ25 |
Power Supply | 220V/110V 50Hz /60Hz 1P |
Compressed Air | 0.1 m³/min - 0.1MPa |
Vacuum | 2.5 m³/min - 0.1MPa |
Noise(db) | < 75 |
Overall Size(mm) | 500 * 550 *(1350 - 1500) |
Weight(kg) | 70 |
Feed Inlet Height | Low foot:700-790 High foot:820-1010 |
Outlet Height | Low foot:980-1070 High foot:1050-1240 |
