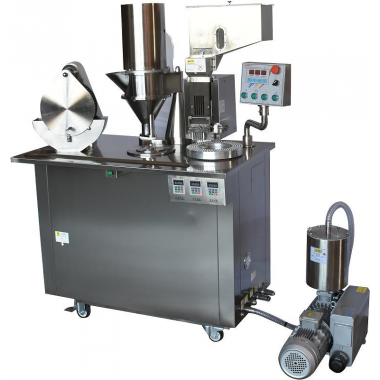

CGN-208D Semi-automatic Capsule Filling Machine
Application:
The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine is adopted programmable control system, touch panel operation, step-less transudation speed-shift, and electronic automatic counter. It can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel.
The capsule filler can fill material in powder, pellet, or granule forms，can handle all capsule sizes from 000 to 5. A special design allows for changing mold for different size capsules within 15 minutes easily, simply, and precisely.
Technical parameters:
CGN-208D Semi-automatic Capsule Filling Machine | |
Model | CGN-208D |
Capacity | 25000 caps/h |
Type of filling materials | Powder/Pellets |
Capsule Size | #000/00/0/1/2/3/4/5 and safety capsule |
Power | 380/220V 50/60Hz 4KW |
Air pressure | 0.03m3/min, 0.7mpa |
Vacuum pump | Evacuating rate, 40m3/h |
Dimensions | 1500*780*1800mm |
Net Weight | 500KG |
Packaging weight | 510KG |
