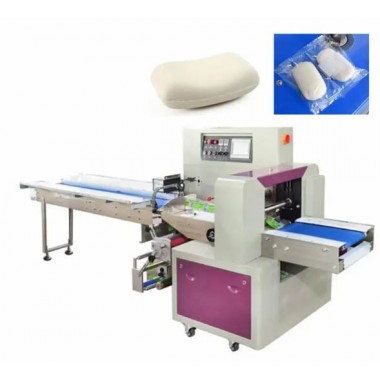

FY-250/350/450 soap pillow packing machine/flow packer
Brief introduction:
This is a multi-functional packaging machine for various kinds of products, such as food(snack bar,bread,cookies,ice lolly cake,chocolate,) plastic parts(cutlery,tray,) hardware,Soap,sponge,tissue,card etc.
Main Features:
1) Dual frequency conversion control,bag length can be set and cut in one step ,saving time and film.
2) 2) High sensitivity photoelectric eye color tracing ,numerical input of cutting sealing position for extra accuracy.
3) 3) Positioned stop function ,without sticking knife or wasting film.
4) 4)Simple driving system,reliable working ,convenient maintenance.
5) 5) All control is realized through software ,easy for function adjusting and technical upgrade .
6) All key parts of the machine are made of 304 stainless steel
7) Temperature independent PID (temperature controller) intelligent control, stable temperature control, better use of various packaging materials.
Technical parameter:
Model: | FY-250 | FY-350 |
Film width: | Max.250mm | Max.350mm |
Bag length: | 65-190 or 120-280 mm | 65-190 or 120-280 mm |
Bag width: | 30-110 mm | 50-160 mm |
Product height: | Max.40mm | Max.45mm |
Film diameter: | Max.320mm | Max.320mm |
Packing speed: | 30-80bag/min | 40-130bag/min |
Power: | 220v，50/60Hz，2.6kw | 220v，50/60Hz，2.6kw |
Machine size: | 3920*670*1320mm | 4020*720*1320mm |
Machine quality: | 800kg | 900kg |
Optional items: | Coding machine，gas-filling device，Fall bread machine，Richard machine | |
