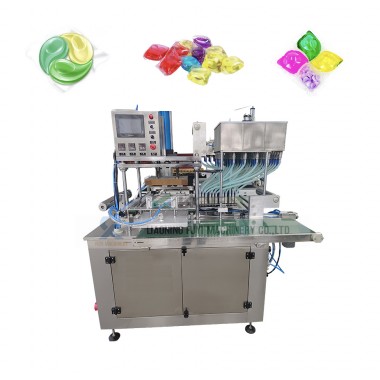

Small plate type PVA film laundry pods Packing Machine
Brief introduction:
*YPC series laundry pods packing machine is used to pack and seal the detergent liquid into PVA water soluble film.
*It is equipped with 25 filling nozzles, which fill the liquid from tank into sealing mould.
* Machine working function, including automatic pull film, automatic feed material(liquid), and automatic sealing, and automatic end product extraction.
* Machine in PLC control and is equipped with temperature control unit to adjust the heating.
* Machine is wholly made of SS304, clean and nice.
* Equipped with vacuum pump, it can help the finished product in good sealing effective.
* It has been exported to USA/SPAIN/JAPAN.
Technical parameters:
Model: | YPC-16A | YPC-25A |
Voltage: | AC 380V/ 50hz 3 phases 7KW | AC 380V/ 50hz 3 phases 7KW |
Filling nozzles quantity: | 16 | 25 |
Capacity: | 32 pcs/min | 50 pcs/min |
Packaging Range: | max 25 g pod | max 15g pod |
Film width: | Upper film:300mm Lower film:340mm | Upper film:300mm Lower film:340mm |
Air compressor: | 0.6Mpa | 0.6Mpa |
Machine Size: | 1850*1930*2200mm | 1850*1930*2200mmm |
Weight: | 600kg | 600kg |
Note: *Air compressor is provided on your own side.
*Pod designs can be replaced by ordering extra molds.
Finished product samples:
