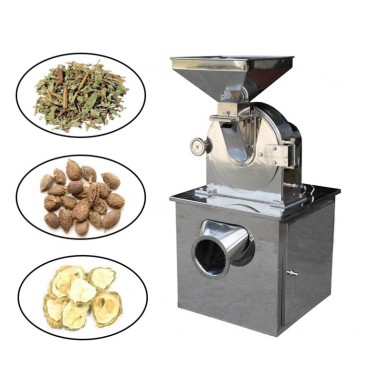

WF Series gear plate type universal crusher/herbs grinder
Product introduction:
*The machine is applied to grind particles, herbs, or other granules, grains into fine powder, which widely used in chemacal, pharmaceutical, and food industries.
*The machine is equipped with air cooling device to reduce the temperature of the machine.
* The working part is enclosed in the body of all stainless steel, and the high-speed operation achieves the advantages of medicine hygiene, low loss and fast efficiency.
Technical parameter:
Model | WF-190 | WF-260 | WF-320 | WF-380 | WF-400 |
Material | Whole SS304 | Whole SS304 | Whole SS304 | Whole SS304 | Whole SS304 |
Capacity（kg/h） | 10-120 | 30-200 | 50-300 | 70-500 | 70-500 |
Voltage（V） | 220/380 | 380 | 380 | 380 | 380 |
Spindle speed（r/min） | 4200 | 4200 | 4200 | 4200 | 4200 |
Power（kw） | 2.2 | 5.5 | 7.5 | 11 | 15 |
Overall dimension（mm） | 480*520*1040 | 750*600*1260 | 780*700*1350 | 800*900*1500 | 900*1300*1500 |
Weight（kg） | 75 | 180 | 260 | 320 | 600 |
Application:
