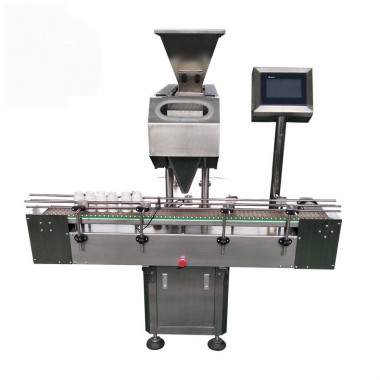

Automatic capsule counting machine
SP-4/6/8 SP-12/18/24
Brief introduction:
This machine adopts the most advanced technology of electronic counter. It can be used for counting and packing tablets (including special-shaped tablets), hard capsules, soft capsules (various forms of transparent and opaque) pills and other solid particles in the range of 3-12 mm. Bottling, packaging and bagging. Fully in line with the requirements of GMP, especially suitable for research institutions, hospitals, new small pharmaceutical companies, health care products factory. Strong compatibility, high accuracy, wide range of applications, can be tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque) count bottles. Fully automatic operation, with the upper and lower intelligent control process, good coordination, no need to operate, save labor, small coverage area, low cost.
Technical Parameters:
Model | SP-8 | SP-12 | SP-16 | SP-24 |
Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |
Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
Weight | 210Kg | 490Kg | 640Kg | 690Kg |
