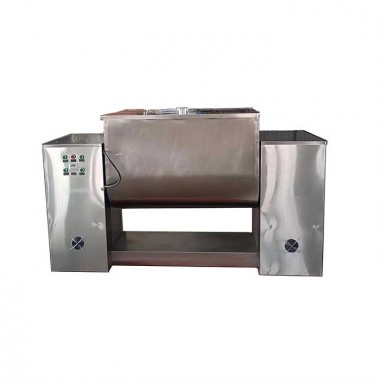

CH single-paddle dry powder wet powder mixing machine
Product introduction:
The machine is a horizontal trough type single pulp mixer, which is mainly used for the uniform mixing of dry or wet powder materials in different proportions in the pharmaceutical industry, and does not produce the dissolution, vitalization or deterioration of materials in the mixing process.
This machine is also suitable for mixing different main and auxiliary materials in chemical, food and other industrial departments. It is not suitable for mixing semi-solid, liquid or materials with too high viscosity.
Main feature:
Both dry powder and wet powder can be mixed.
Frequency converter can be equipped as per your request.
Technical parameters：
Model | Working volume(L) | Loading volume(L) | Spindle rotation speed (r/min) | Main motor power(kw) | Discharging motor power(kw) | Overall size（mm） | Machine weight(kg) |
CH10 | 10 | 5 | 24 | 0.55 | Manual | 600×280×500 | 40 |
CH20 | 20 | 10 | 24 | 0.55 | Manual | 750×380×610 | 71 |
CH50 | 50 | 25 | 24 | 1.1 | 0.75 | 980×425×820 | 220 |
CH100 | 100 | 50-60 | 24 | 2.2 | 0.75 | 1280×440×900 | 250 |
CH150 | 150 | 75-80 | 24 | 3 | 0.75 | 1590×660×1075 | 550 |
CH200 | 200 | 100-120 | 24 | 4 | 0.75 | 1590×660×1125 | 600 |
CH300 | 300 | 150-180 | 24 | 5.5 | 1.1 | 1890×700×1235 | 920 |
CH400 | 400 | 200-240 | 24 | 7.5 | 1.5 | 2140×705×1265 | 1040 |
CH500 | 500 | 250-300 | 22 | 11 | 1.5 | 2435×900×1385 | 1320 |
NOTES:other mixing volumes can be customized, please contact us for more details.
Application:
