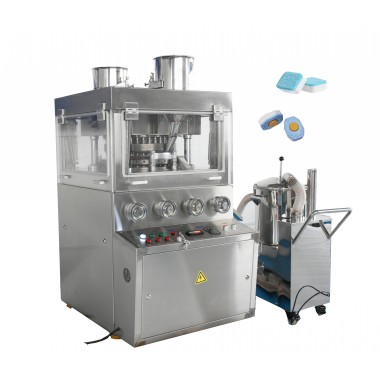

ZPW-19D/21D double-color dishwasher rotary tablet press
Product introduction：
This machine is a rotary series tablet press, with high pressure, in line with GMP requirements and excellent performance. It is suitable for pressing powder and granular materials of all kinds of food, medicine and chemical industry, such as 2-color washing cubes, dish washing cubes, cleaning effervescent tablet, chicken essence block and so on. The equipment can also be customized and designed as touch screen control according to customer requirements.
Main feature:
Tablet shape and size can be customized.
Can change PLC touch screen as per your request.
Vacuum conveyor and dust cleaner can be equipped.
Main technical parameters:
Model: | ZPW-19D | ZPW-21D |
Punch&die: | 19 sets | 21 sets |
Max Pressure: | 120 kn | 120 kn |
Max. Dia. of Tablet: | 40 mm | 40 mm |
Max. Depth of Filling : | 40 mm | 40 mm |
Max. Thickness of Filling: | 15 mm | 20 mm |
Rotate speed : | 14-36 r/min | 14-36 r/min |
Production Capacity : | Double color：20500 pcs/h Single color: 41000 pcs/h | Double color：25500 pcs/h Single color: 51000 pcs/h |
Motor power : | 7.5 kw /1400RPM | 7.5 kw /1400RPM |
Electric power source: | 380V/50HZ/3Phase | 380V/50HZ/3Phase |
Overall Dimensions: | 1500*1300*1650 mm | 1500*1300*1650 mm |
Weight: | 2050kg | 2050kg |
Application:
