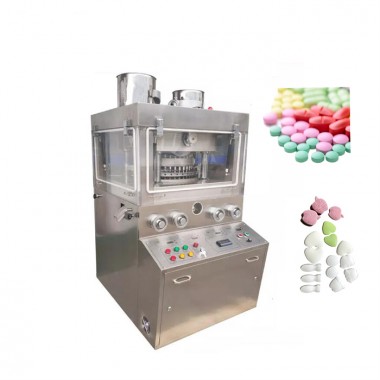

ZP-35/37/41D high speed Rotary tablet Press Machine
Product introduction：
The machine is used to press all sorts of granular materials, like geometry shape of profiled sheet, double lettering piece, traditional Chinese medicine tablet, western medicine tablet, calcium tablet, buccal tablet, spirulina tablet, milk tablet, candy tablet, effervescent tablets, chewable tablets, seasoning block, chicken pieces, camphor ball (naphthalene), aromatic piece, disinfection tablet, fertilizer tablet, pesticide tablet, button cell, electronics, metallurgy powder ceramic grain, etc.
Main Features:
1. The structure has double pressure, two sets of roller, frequency control of motor speed, depth of fill, tablet thickness are can adjusted.
2. The machine is equipped with mechanical buffer device, the pressure overload can automatically shutdown, killing all had a broken impact protection, can avoid parts damaged.
3. In accordance with GMP standard.
4. When manufacturing double color piece, it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raised profit.
Technical Parameters：
Product model | ZP35D | ZP37D | ZP41D |
Quantity of punch&die(Set) | 35 | 37 | 41 |
Max. Pressure (KN) | 80 | 80 | 80 |
Max. Dia. of Tablet (mm) | 13 | 13 | 13 |
Max. Thickness of Tablet (mm) | 6 | 6 | 6 |
Max. Depth of Filling (mm) | 15 | 15 | 15 |
Rotate speed (r/min) | 5-36 | 14-37 | 14-37 |
Production Capacity (pc/h) | 150000 | 160000 | 170000 |
Electric power source(V/Hz) | 380/50 | 380/50 | 380/50 |
Power (KW) | 4 | 4 | 4 |
Outside measurement (mm) | 980*1240*1690 | 1230*950*1670 | 1230-950*1670 |
Weight (kg) | 1700 | 1700 | 1700 |
